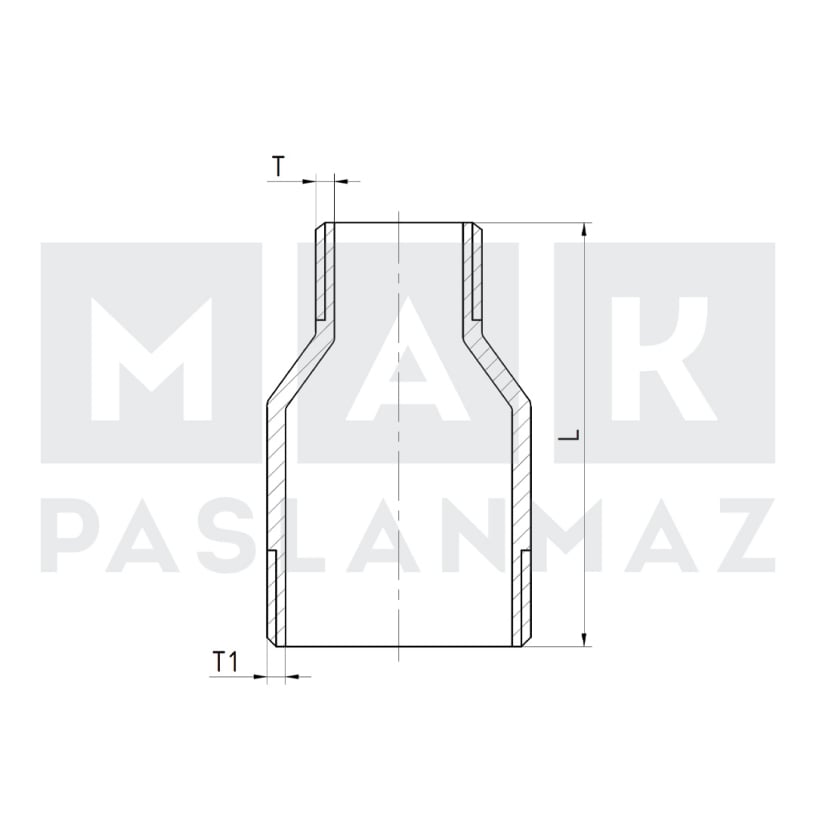

Concentric swage nipples are stainless steel pipe fittings used to connect pipes of different diameters.
Material: Usually 304 or 316 grade stainless steel
Tooth type: NPT (American National Pipe Thread Standard) or BSP (British Pipe Thread Standard)
Pressure class: Usually 3000 lb/inch² or higher

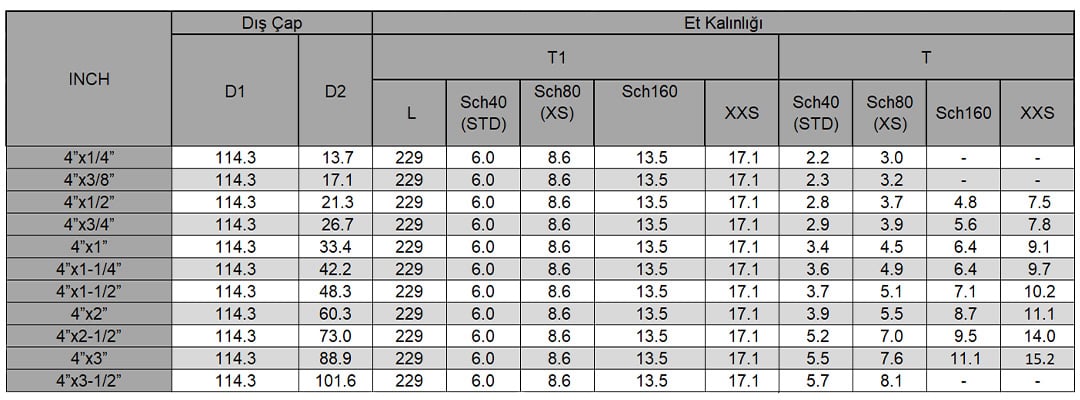

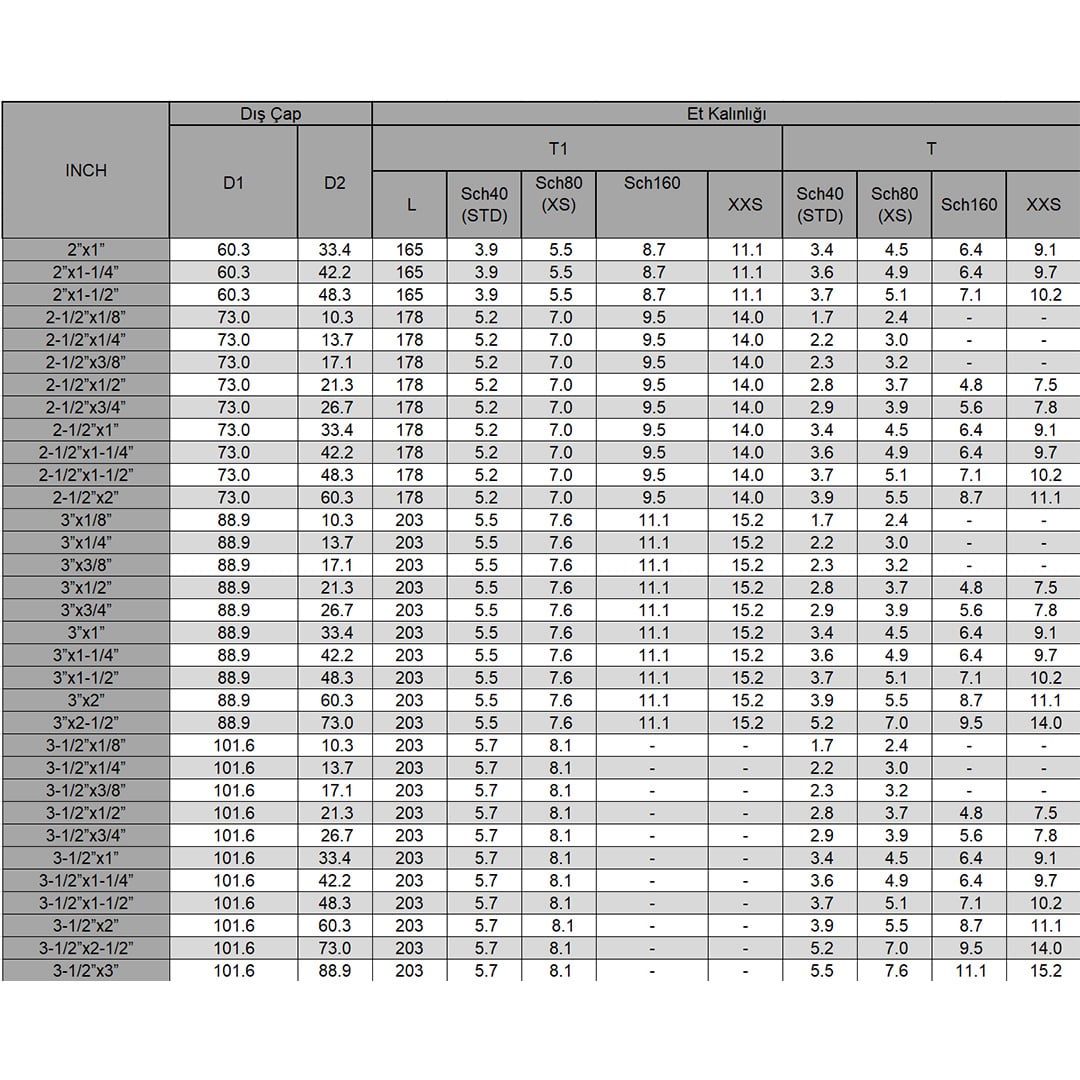

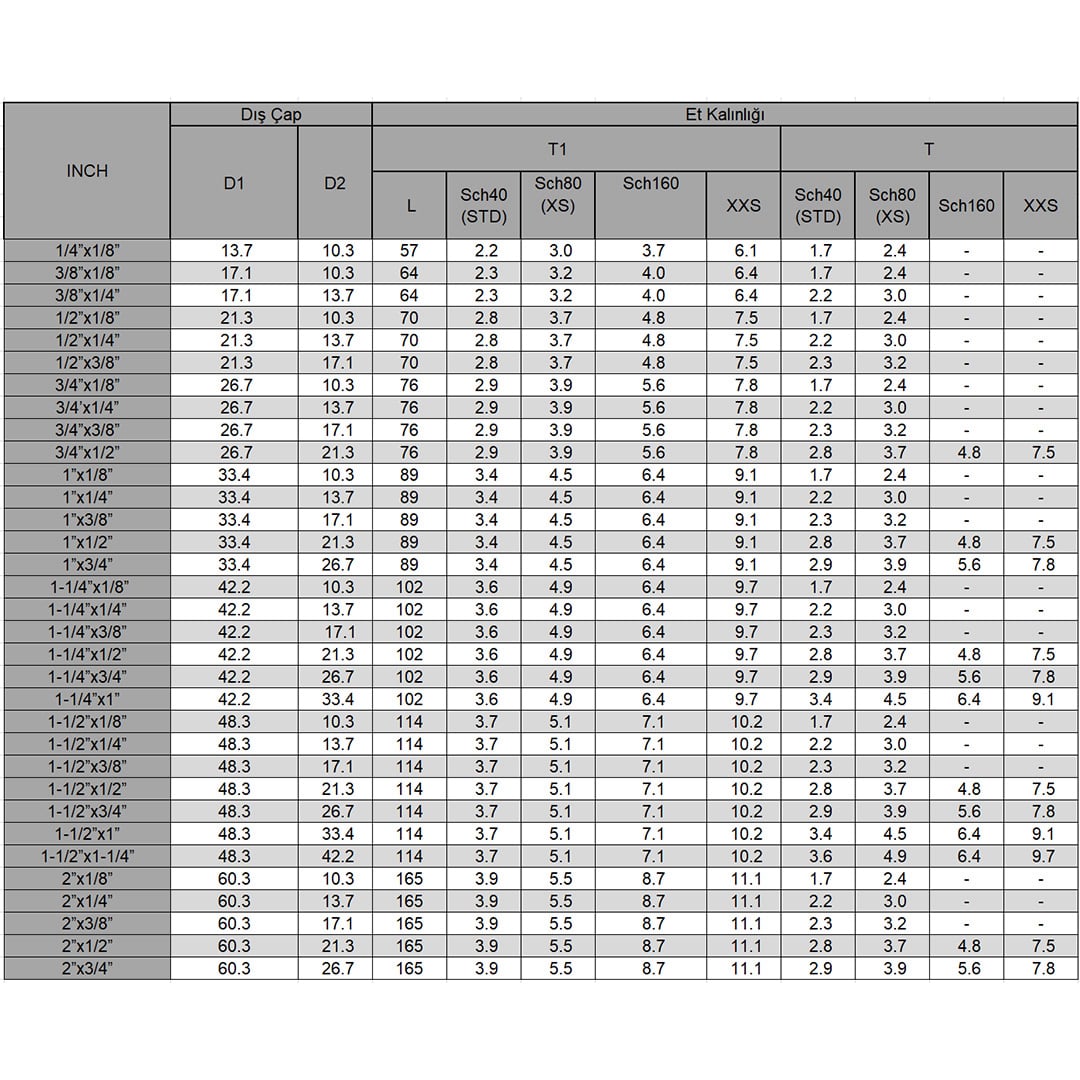

Dimensions: Available in various sizes (1/4" to 12")
Standards ANSI B16.11, MSS SP-95
These concentric swage nipples are used in high pressure applications in the chemical, petrochemical, machinery, shipbuilding and other industries. They are available in different material options, thread types and pressure classes. Swage nipples provide secure and leak-tight connections to pipelines.
