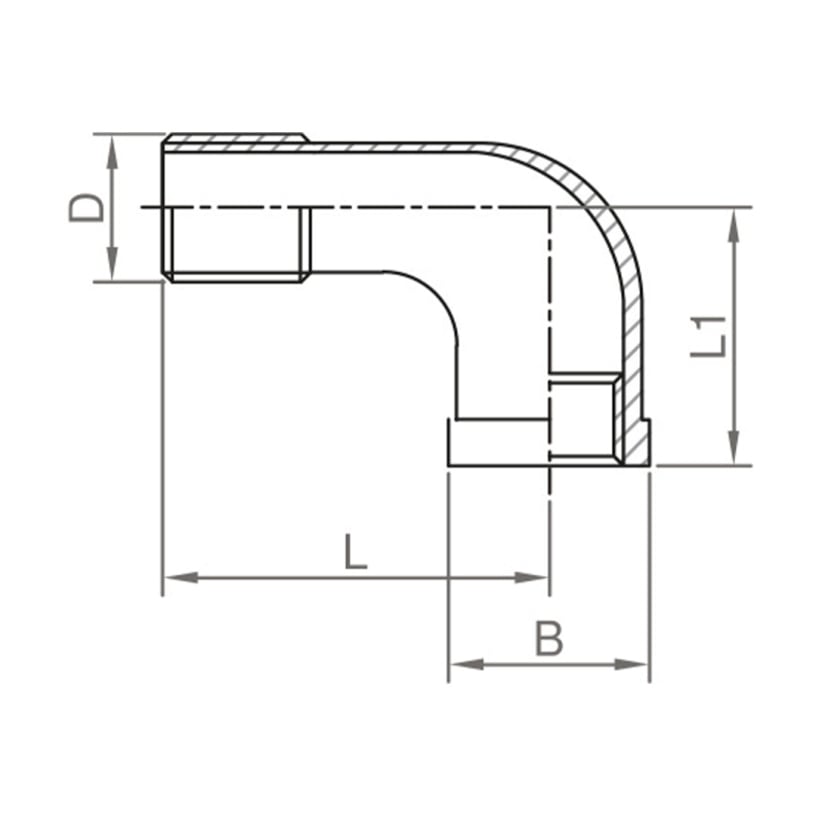

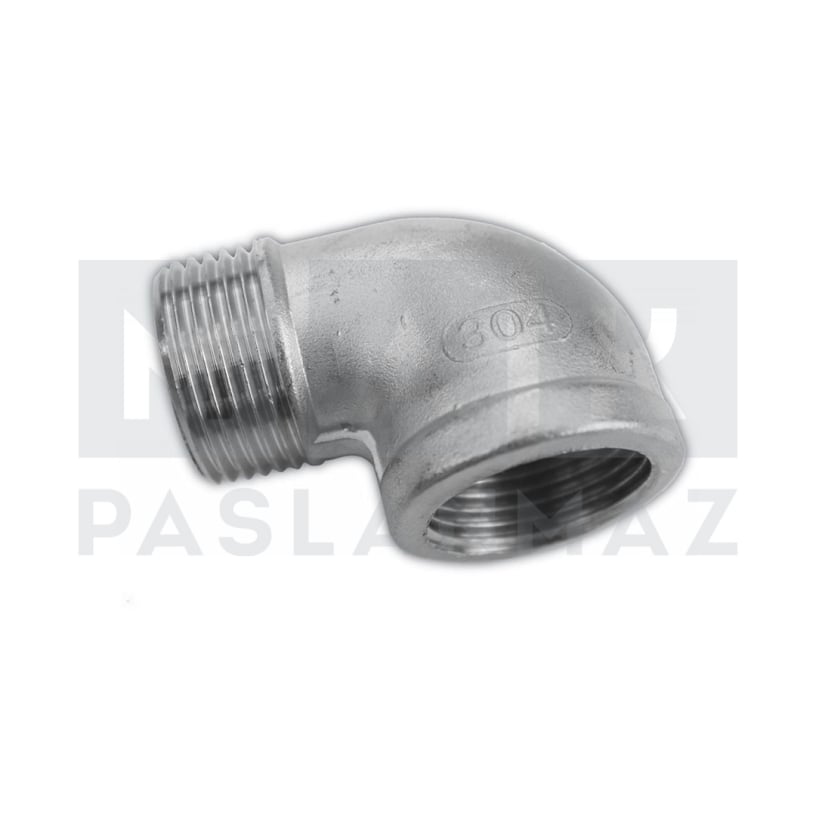

Stainless 90° tailed elbows are stainless steel fittings used in pipelines to change the direction of fluids by making a 90 degree turn.
Material: 304 or 316 grade stainless steel
Tooth type: NPT (American National Pipe Thread Standard) or BSP (British Pipe Thread Standard)
Pressure class: Usually 150 lb or 300 lb

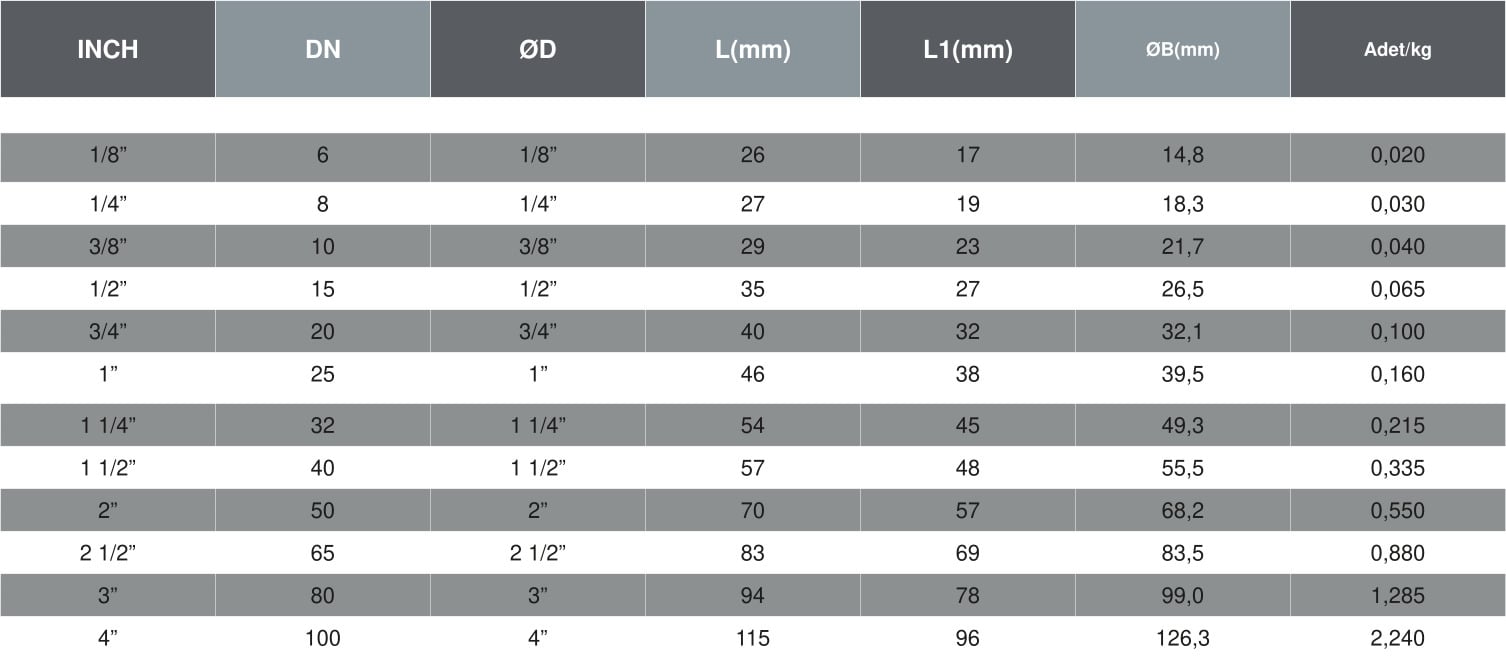

Dimensions: Available in various sizes (1/2" to 12")
Standards ANSI B16.11, MSS SP-79
These tailed elbows allow liquid, gas and solid fluids to be turned in different directions in pipelines. Widely used in chemical, petrochemical, machinery, shipbuilding and other industries. Different material, thread type and pressure class options are available.
